The 400 Lake Shore development introduces a façade-driven approach to high-rise residential construction on Chicago’s waterfront, where envelope performance, constructability, and repetition at scale are central to the architectural outcome. The North Tower, designed by Skidmore, Owings & Merrill, rises to approximately 857 feet across 72 storeys and establishes its identity primarily through a rigorously modular glass curtain wall system.

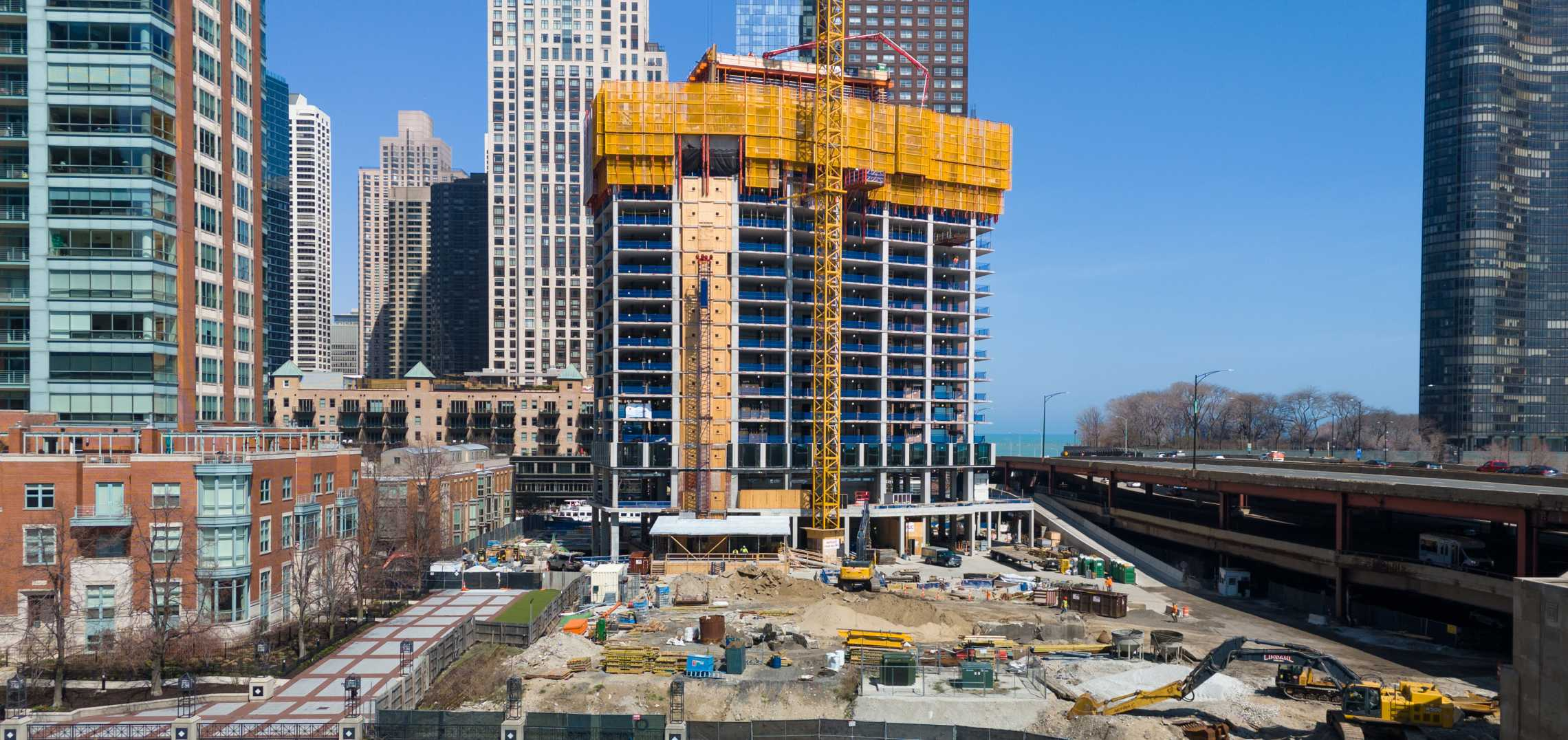

The building envelope comprises roughly 362,000 square feet of unitized curtain wall, fabricated off-site and installed floor by floor in synchronized sequence with the concrete superstructure. This prefabricated strategy minimizes site tolerances, reduces vertical alignment deviations, and allows consistent sealing, gasketing, and glazing quality across the full tower height, a decisive advantage for tall residential façades exposed to lake-driven wind loads.

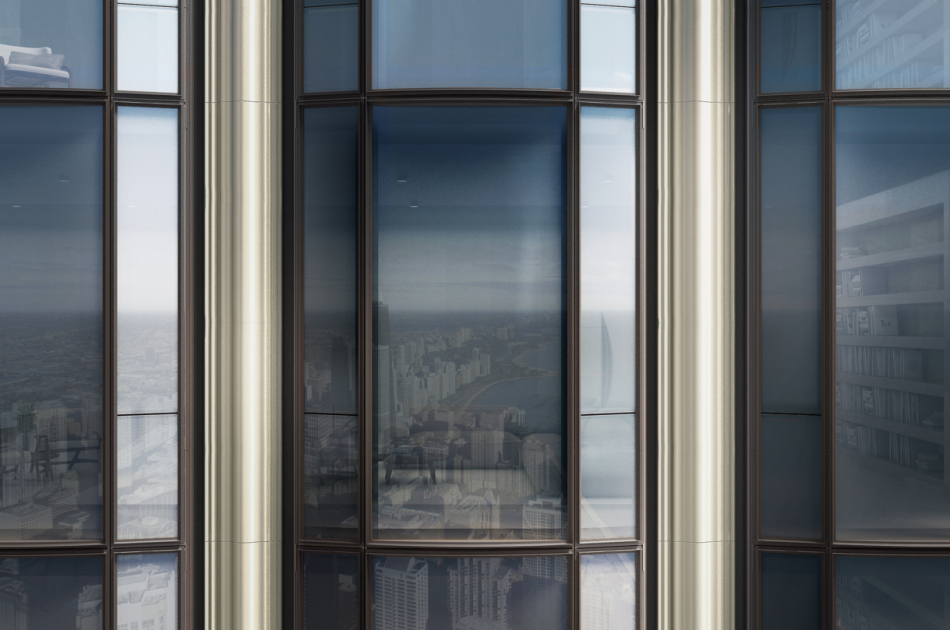

Façade articulation is achieved through vertically stacked bay assemblies, referencing the historic Chicago bay window while translating it into a contemporary aluminum-and-glass system. Each bay integrates floor-to-ceiling insulated glazing units framed by extruded aluminum pilasters. These pilasters function as both architectural fins and structural stiffeners, improving lateral performance and distributing wind pressure across the curtain wall grid.

The glazing specification employs high-performance solar-control coated glass, calibrated to balance daylight transmittance with solar gain limitation. The low external reflectance reduces glare impact on the surrounding urban fabric while maintaining visual continuity between interior spaces and the lakefront environment. Thermal performance targets are addressed through insulated units, thermally broken framing, and controlled air-water barriers integrated within the unitized modules.

Selected façade zones incorporate operable ventilation panels engineered directly into the curtain wall units. This system enables controlled natural ventilation without compromising acoustic insulation or envelope continuity, a technical feature rarely executed at this scale in residential towers.

At 400 Lake Shore, the façade operates as a load-resistant, climate-moderating, and production-optimized system, demonstrating how industrialized curtain wall construction is redefining precision, speed, and performance in next-generation supertall residential buildings.
