The Pine Rest Pediatric Center of Behavioral Health delivers a highly detailed architectural response to the complex demands of pediatric behavioral healthcare, where safety, durability and emotional comfort must coexist seamlessly. Completed in March 2026, the 136,000-square-foot building is carefully integrated into its 220-acre wooded campus, using site orientation, glazing and material choices to reinforce a strong connection to nature.

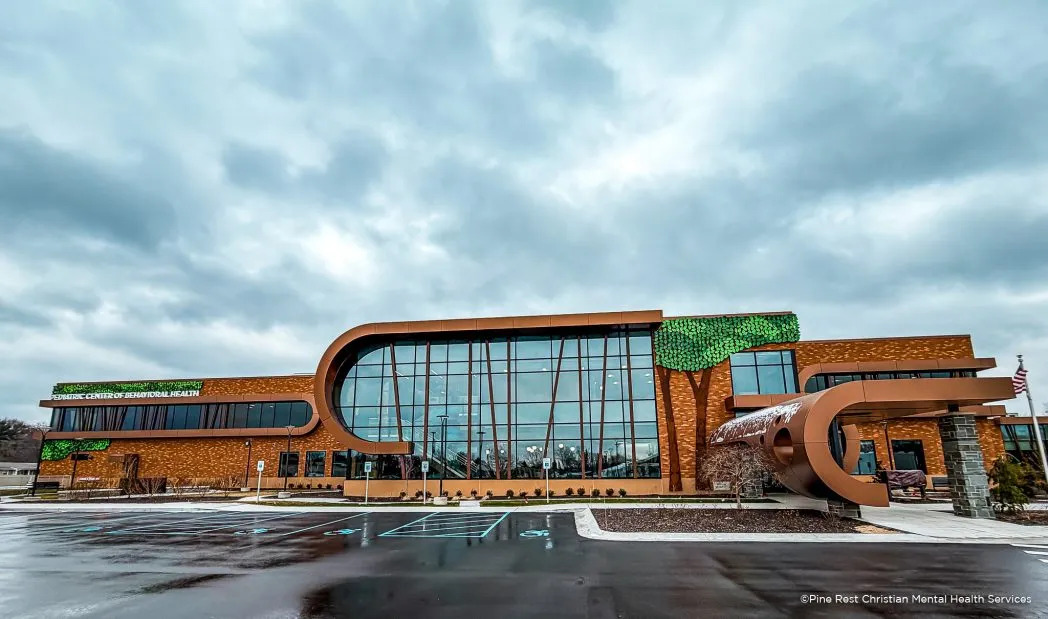

Designed by BWBR, the building’s massing and spatial organization are guided by a “treehouse” concept derived from patient and community input. This translates architecturally into layered volumes, warm interior sightlines and controlled transparency. The façade composition supports this vision through a mix of expansive glazed areas and solid elements, balancing openness with the strict safety requirements of a behavioral health facility.

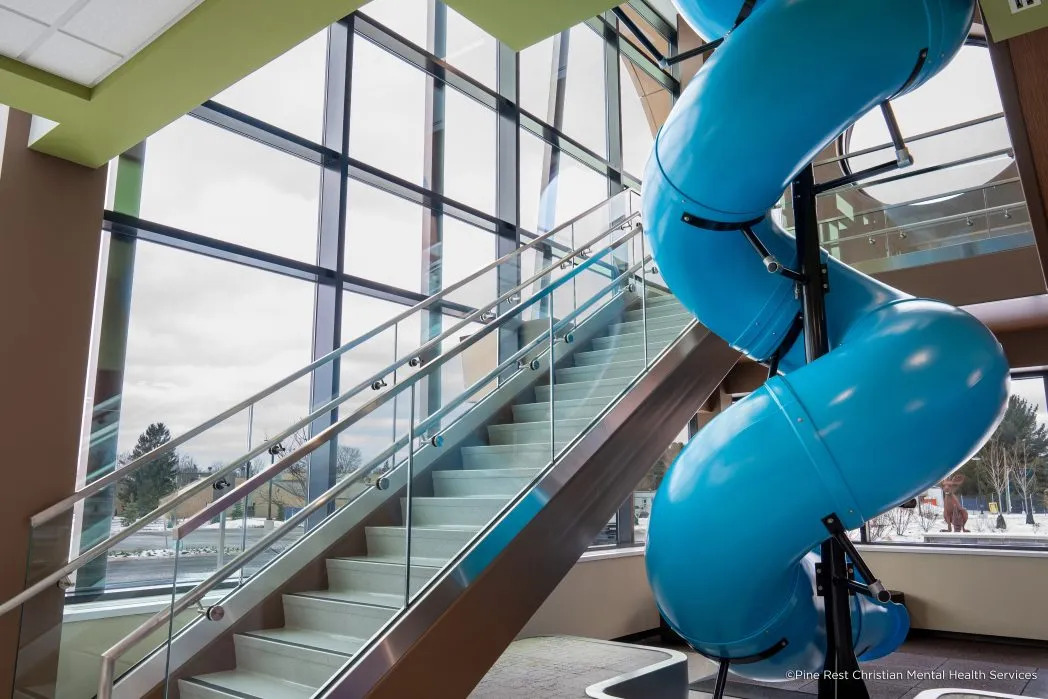

A defining technical feature is the curtain wall system, engineered using the Tubelite 400T Series Curtain Wall. Installed by Vos Glass, the system incorporates three distinct aluminum framing depths, 6, 7 and 10 inches, allowing it to accommodate varying structural loads and façade conditions. The curtain wall spans reach up to 27 feet 6 inches, requiring precise engineering to maintain deflection limits and ensure air and water tightness.

The façade also includes complex geometries, such as segmented wall sections and circular glazed elements ranging from 4 to 6 feet in diameter. These features demanded advanced fabrication and installation coordination, particularly at transitions between flat and curved surfaces. A custom cross-shaped glazed opening within the chapel adds a symbolic architectural element while maintaining the integrity of the building envelope.

For inpatient units, the project utilizes Wausau 4000i-DT Behavioral Care Windows, specifically designed for high-risk environments. A total of 66 units were installed across patient areas, each engineered to meet stringent safety standards, including Fenestration and Glazing Industry Alliance AAMA 501.8 impact testing. These windows are capable of withstanding interior impact forces up to 2,000 foot-pounds, simulating human impact scenarios, while also resisting exterior impacts from thrown objects.

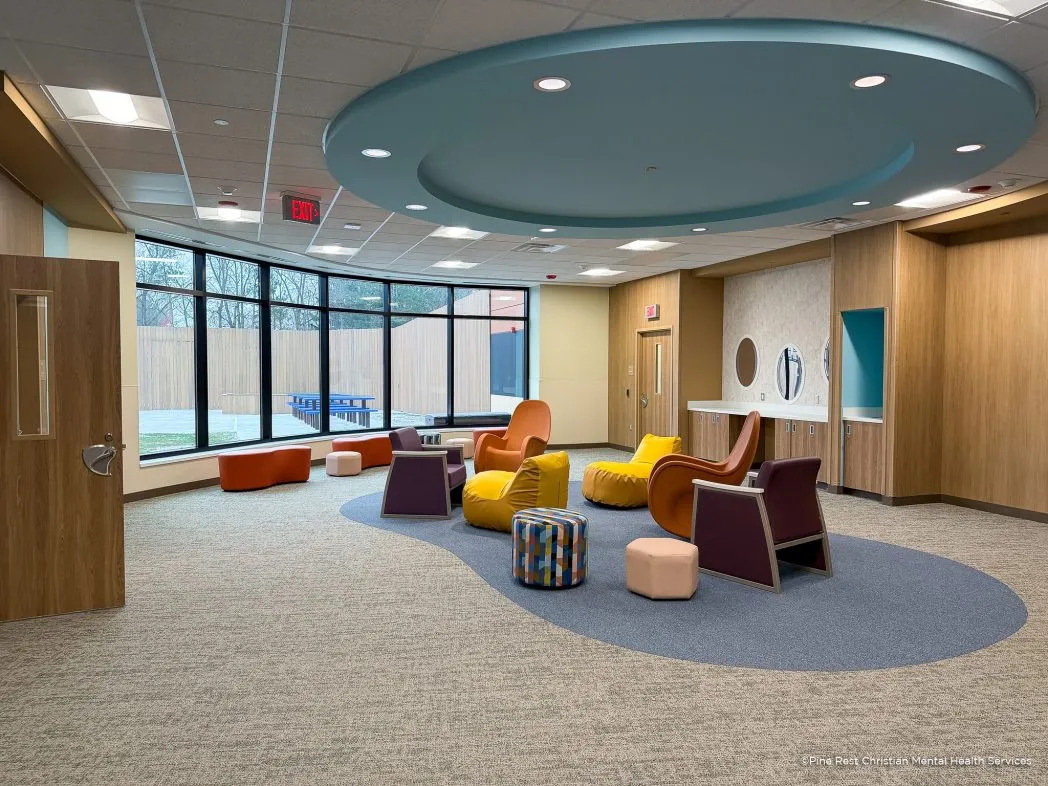

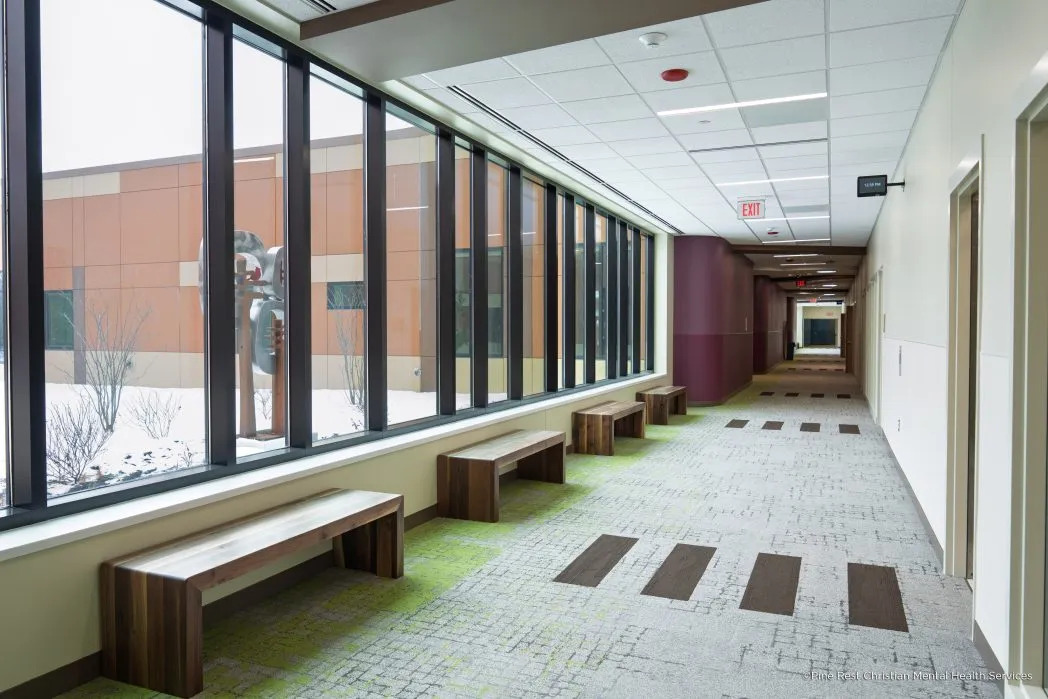

Despite these robust safety features, the glazing strategy prioritizes daylighting and visibility. Carefully positioned windows and curtain wall sections provide controlled views of the surrounding landscape, supporting a biophilic design approach that has been shown to reduce stress and improve recovery outcomes.

Thermal performance and finish durability were enhanced by Linetec, which applied 70% fluoropolymer coatings meeting AAMA 2605 standards. These finishes offer high resistance to weathering, UV degradation and abrasion, ensuring long-term façade performance with minimal maintenance.
