In the world of laminated glass cutting, efficiency and precision are paramount. To achieve peak performance in this specialized industry, LiSEC, a leading manufacturer of glass processing systems, advocates for the utilization of two cutting bridges.
However, the key to maximizing this setup lies not just in having two bridges but in how they work together through a process known as dynamic load balancing.
The Need for Two Cutting Bridges
LiSEC suggests that employing two sequentially arranged cutting bridges can significantly enhance productivity in laminated glass cutting. In a well-optimized system, these bridges can cut up to 140 square meters of laminated glass per hour during series production and up to 75 square meters per hour in regular insulating glass production. The twin-bridge system leverages their combined capabilities, but without effective coordination, simply having two bridges can lead to inefficiencies.
Why Leverage Dynamic Load Balancing?
The cutting patterns in laminated glass production often feature a greater number of Y and Z cuts compared to X cuts. Without proper management, this could create significant bottlenecks. Imagine a scenario where one bridge is waiting idly while the other is overwhelmed with tasks. This imbalance hampers overall productivity.
Dynamic load balancing addresses this issue by intelligently distributing cuts among the bridges. This optimization ensures that all necessary cuts are managed swiftly and evenly, leading to continuous production cycles. The balancing act not only prevents delays but also maximizes the output potential of the entire system.
Key Components of the Cutting Line

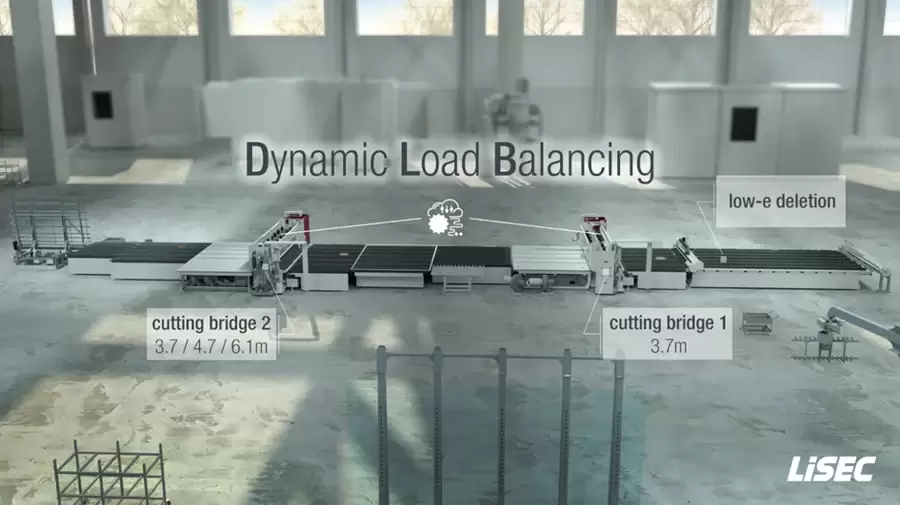

The laminated glass cutting line is equipped with advanced technology designed for seamless operation. At the forefront is the DSC-A LoW-E deletion system, which is responsible for the edge deletion of Low-E or solar control coatings. This critical step occurs upstream of the cutting bridges, enabling the deletion process to take place without impacting the cycle time of glass cutting.
The two cutting bridges, available in widths of 3.7, 4.7, or 6.1 meters tailored to production needs, significantly enhance the cutting process. The first VSL-A cutting system specializes in cutting, breaking, and separating laminated glass traverses and residual panes in the X and Y planes. Impressively, this first system can complete these tasks in under 30 seconds for glass thicknesses up to 16.76 millimeters.
Similarly, the second VSL-A cutting bridge operates with equal efficiency, handling cuts in the Y and Z planes within the same time frame. The capability to automatically process special shapes further expands the versatility of this cutting line.
Dynamic Load Balancing
The Intelligence Behind Dynamic Load Balancing
Dynamic load balancing integrates sophisticated algorithms that enable the machinery to assess and react to real-time operational conditions. By considering variables such as the number of cuts required per sub-plate, the composition of cuts (Y and Z), and potential downtimes related to operators, the system can make informed decisions.

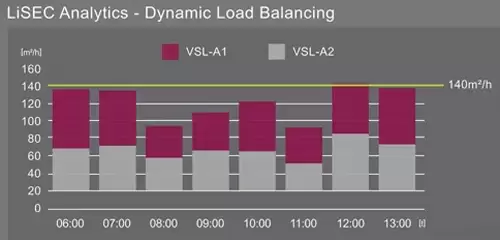

The result is a fair distribution of workload between the two cutting bridges. This operational intelligence ensures that both systems operate continuously, enhancing overall throughput and efficiency. By implementing dynamic load balancing, the cutting line can maintain high productivity levels, achieving up to 140 square meters per hour for series production and up to 75 square meters per hour for regular insulating glass production.
In conclusion, the marriage of two cutting bridges with dynamic load balancing represents a significant advancement in laminated glass cutting technology. By addressing the unique demands of this industry through effective workload distribution, manufacturers can achieve unparalleled efficiency and performance. As glass cutting technology continues to evolve, solutions like LiSEC’s dynamic load balancing will be crucial in meeting the production goals and challenges of tomorrow.
Source:LiSEC with additional information added by GlassBalkan
