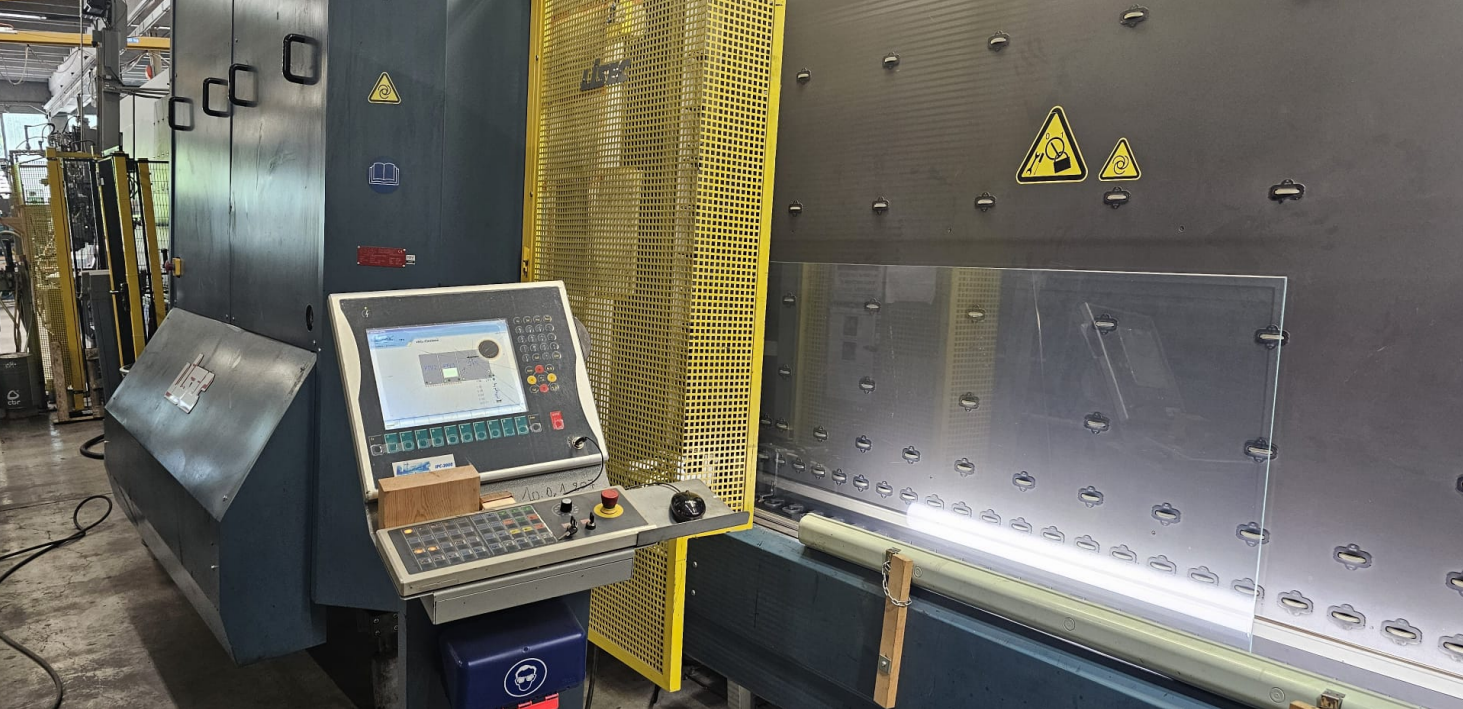

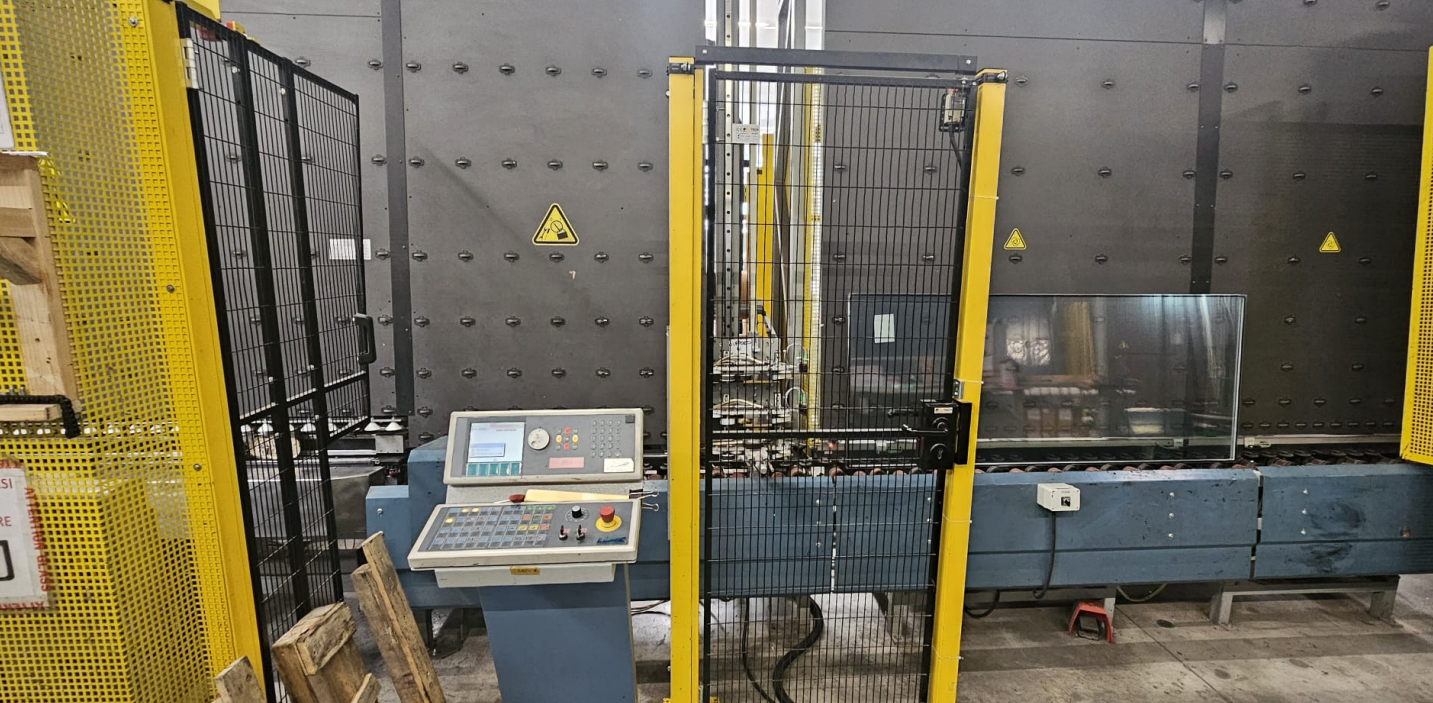

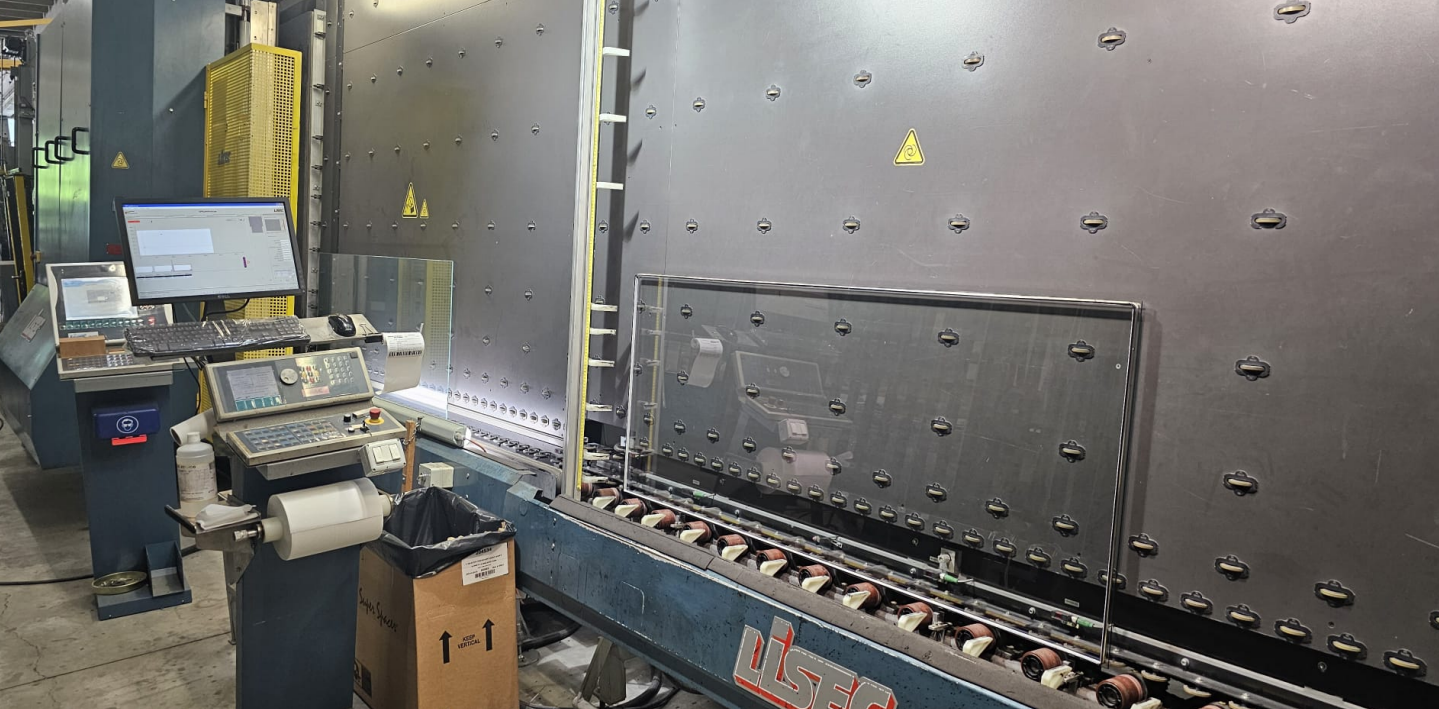

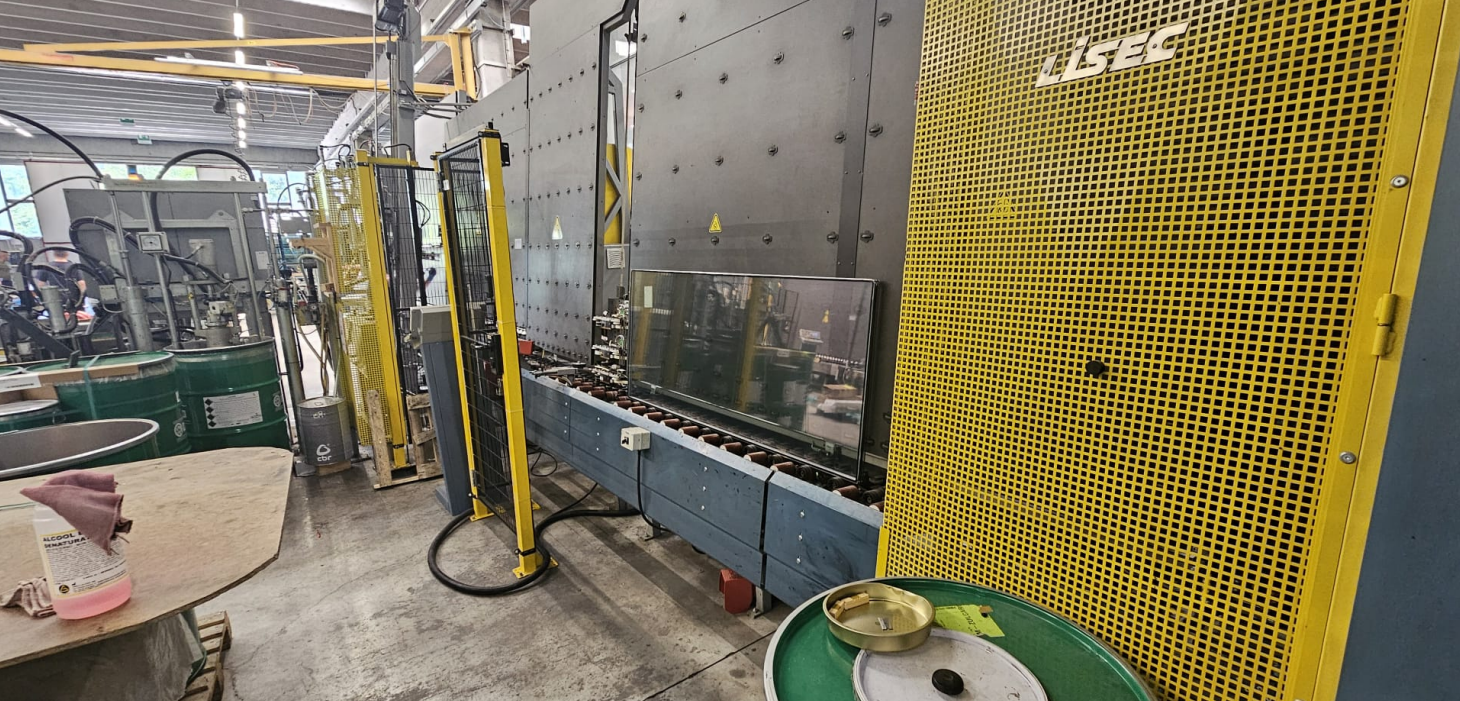

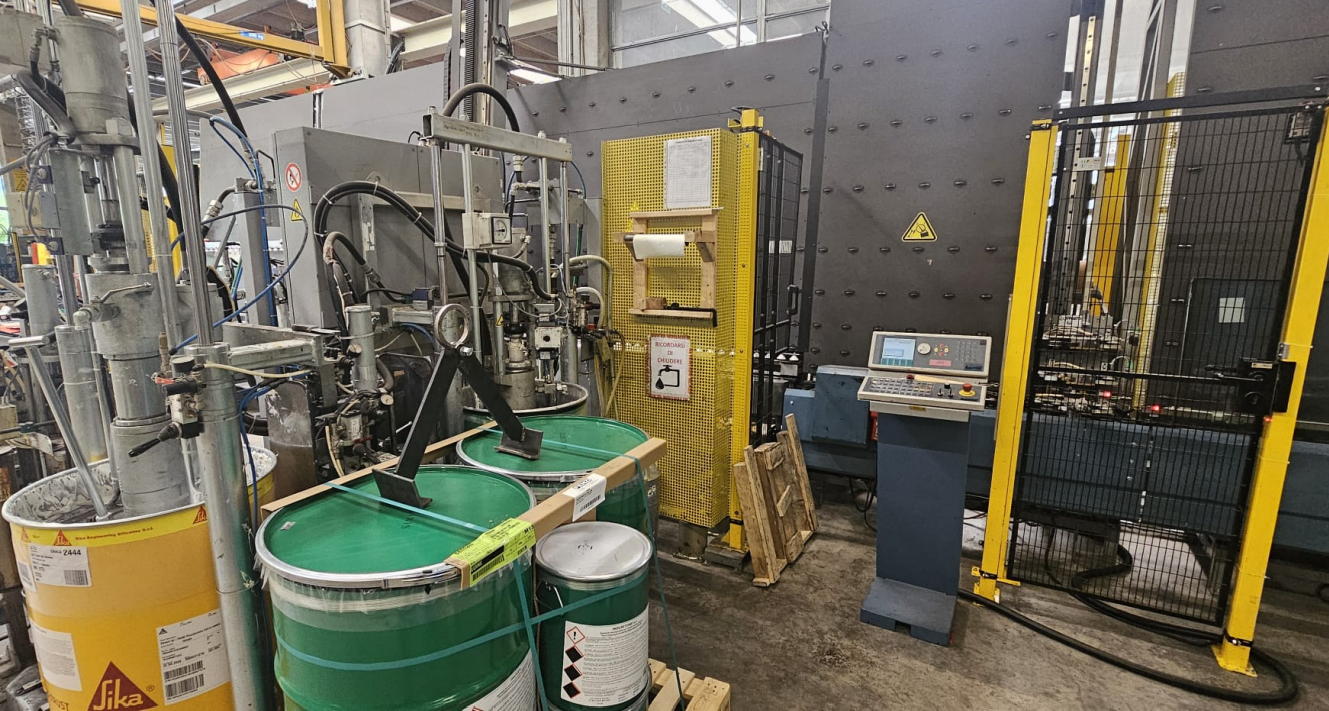

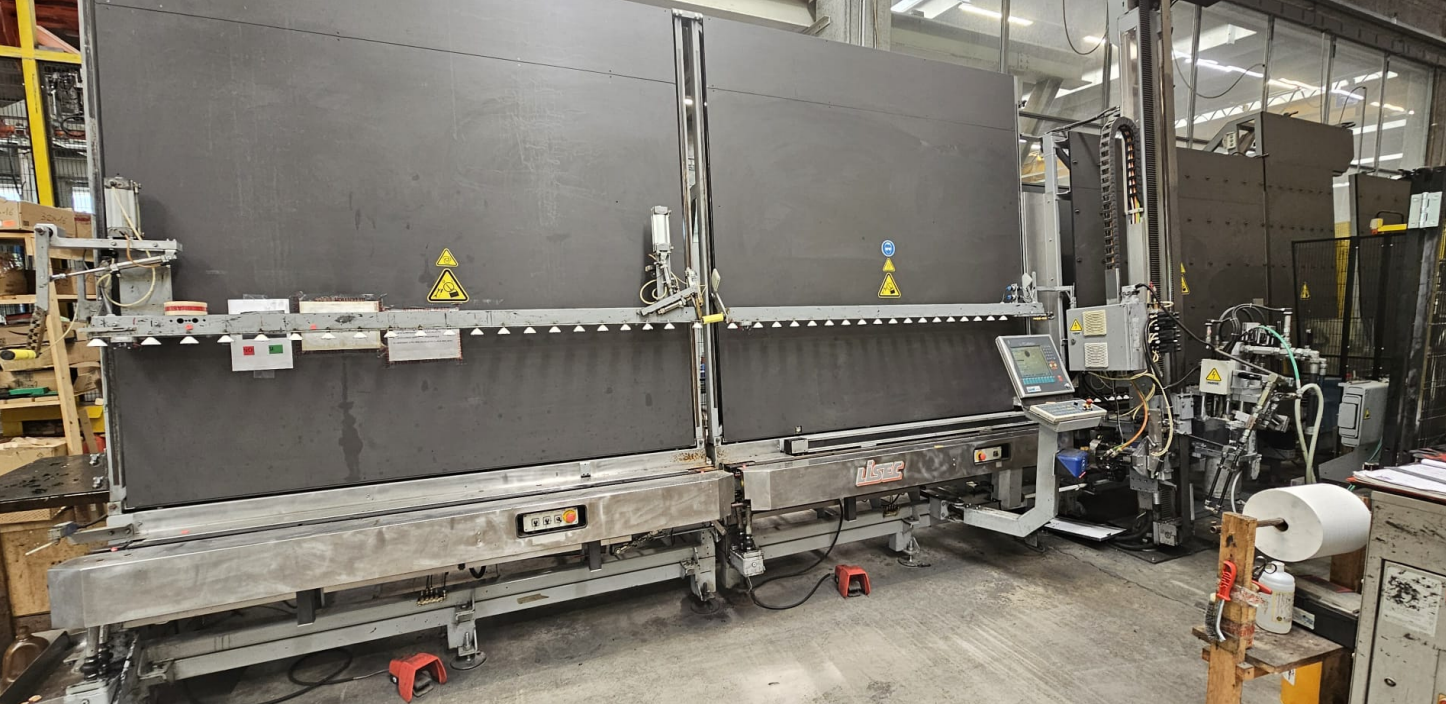

The LiSEC IG Line is a complete insulating glass production line designed for the manufacturing of double and triple glazed units.
The line is composed of multiple LiSEC modules including:
RTVB-11/20AV 380-057663
AKL-20V 300-057664
RTVB-11/20AE 380-057665
RTVB-22/20WE 380-057666
VHW-20/6M 314-057667
RTVB-11/20ST 380-057668
RSVN-25/20S 321-057669
RTVN-27/20MZ 383-057670
FPS-26/20US 344-057671
RTVB-27/20ST 380-057672
APKV-3/20 370-057673
VFL-1DS/20 360-057674
DOS-1PSD+SID 365-057675
KSE 494-057676
KHB-45 494-057677
LAS-25 495-057678

Colour: Lisec blue
Transport height 720mm
Direction: right-left
Max. size 2,500×2,000mm
Min. size 350x180mm – 400x250mm on APKV
Max. load: 150 kg/m single glazing – 250 kg/m double glazing
Single glazing thickness 3-19mm

Brushes 0.12mm
No sensor coating VHW
Double and triple glazing
Max. panel thickness 60mm
Max. thickness of fixed and movable plate FPS: 19mm
Round templates from catalogue
Offset 0-100mm horizontal side – 0-200mm other sides
Press with gas

Production year: 2010
